Category Archives: Visualizing

displaying execution traces on a SIMILE timeline

Posted on by

chronimoz-timeline-1

chroniquery can now output JSON for display using the SIMILE timeline widget.  And I am finally done trying to figure out what was going wrong.  Click the pictures to experience the timeline sensation for yourself.

Related interesting things:

  • Supports a fancy if specific constraint mechanism.  For example, PrepareAndDispatch is only displayed in the context of nsTimerImpl::Fire using the following line in the config file:
[func@PrepareAndDispatch]
only_show_if=backtrace,4,nsTimerImpl::Fire
  • Supports displaying arguments in the title using the config file.  For example, displaying the observer service’s topic (plus putting it in its own band and giving it a nice prefix):
[class@nsObserverService]
prefixAlias=Obs:
band=context
list_args=aTopic
  • We actually get the dump() output by logging where _IO_fputs shows up.  We constrain its output by adding an extensible (if currently somewhat specialized) argument-based constraint.
  • Things in red are red because their return codes were exceptional, per my last blog post.  Things in other colors are that way because of the config file.
  • The bubbles that show up when you click on things tell you the return value and arguments for the call in question.  We could include a backtrace, but they are expensive to compute (currently), so I don’t.
  • All layout is using the timeline widget’s layout.  There is no correspondence between stack depth and anything else.

chronimoz-timeline-2

An important limitation is that all functions displayed here were explicitly chosen for display.  Some form of automated mechanism could be used, but unless chronicle-query starts caching more things, it would be really slow.  Here’s the command-line used for the above:

chron-xpc mozrun-9022.db jsontrace -t 1 -f nsObserverService::NotifyObservers -f nsThread::ProcessNextEvent -f nsTimerImpl::Fire -f nsMsgSearchSession::NotifyListenersDone -f nsMsgDBFolder::Shutdown  -f nsMsgLocalMailFolder::AddMessage -f nsMsgDatabase::Open -f nsMsgDatabase::ForceClosed -f nsMsgLocalMailFolder::GetDatabaseWithReparse -f nsMsgDBFolder::OnAnnouncerGoingAway -f nsMsgDBFolder::AddSubfolder -f nsMsgSearchOfflineMail::OpenSummaryFile -f nsMsgSearchSession::TimerCallback -f nsMsgSearchSession::TimeSlice -f nsMsgSearchSession::TimeSliceSerial -f nsMsgSearchScopeTerm::TimeSlice -f nsMsgXFVirtualFolderDBView::Open -f nsMsgXFVirtualFolderDBView::OnNewSearch -f nsMsgXFVirtualFolderDBView::OnSearchDone  -f js_GC -f PrepareAndDispatch -f nsMsgLocalMailFolder::UpdateFolder -f _IO_fputs

understanding where unit tests go wrong with object diffs

Posted on by

chronimoz-diff-1

In our last chroniquery adventure, we used roc‘s chronicle-recorder to trace the execution of an xpcshell unit test and chroniquery (repo info) to use that trace to help us understand what was happening in some particularly confusing C-ish code.  Actually, we’re doing that this time too, but the bag of tricks now contains additional tricks.

The exciting things happening in the screenshot above, in order of increasing awesomeness:

  • The argument list is exposing out-parameters (via a heuristic though, it doesn’t know the XPCOM details.)  ex: “*folderInfo: 0x0” used to be “folderInfo: some pointer to hold an out-parameter that leaves us none the wiser.”
  • Chronifer now sees through ‘this’-adjusting trampolines/wrappers.  Previously, function calls might be hidden because the stack pointer change that chronicle uses to determine function calls jumped to the trampoline whose bytecode was not associated with the actual function being called, and so would potentially be assumed to be boring.  The trampoline would modify rdi then perform a trivial jump (it could have just fallen through) into the function proper, which the existing trampoline detector would not notice.  (That detector only would notice an instant jump of more than 128 bytes; intended for dynamic linking indirection purposes.)
  • Pretty printers allow us to translate nsresult error codes to strings, display the strings referenced by nsString/nsCString instead of the raw structure (mData/mLength/mFlags), pierce nsCOMPtr’s, etc.
  • Pretty printers allow us to detect exceptional values and show them in red!  For example, that NS_ERROR_INVALID_POINTER is red because the nsresult pretty printer’s is_exceptional method returned True because the error bit was high.
  • The configuration method that lets us say what directories/files/classes/functions are interesting/boring has been augmented to let us specify arguments and the sub-fields of arguments to dump.  For example, in the above screenshot, we have added “dump_this=True” to the section labeled “[class@nsMsgLocalMailFolder]”.  As a result, any time a method is called on nsMsgLocalMailFolder, we dump the contents of its ‘this’.  If we only wanted a few fields from “this”, we could have used “dump_this=mPath,mIsServer,mName,mURI” instead.  You can see the end of a full object dump at the top of the screenshot.
  • The object dump output is diffed against the result of previous calls.  This is why we have that text in yellow.  The first entire GetDBFolderInfoAndDB call you see on the screen is a succesful call (no red!) diffed against a previous successful call.  Mainly we see the name-derived things changing and things we expect to be distinct (file path, database).  Then we have an error case, with a few things we probably would not have noticed if we were doing this by hand.  I was somewhat surprised that mHaveParsedURI, the reference count, and m_numOfflineMsgLines showed up.  The others are not entirely shocking, but it’s useful to have them all there.  Without the diff, we would be looking at 65 lines of attribute values, and that is with us already benefitting from the pretty printers.

Exciting possibilities opened by enhancements here:

  • The pretty printers and internal cleanups/refactoring make it feasible to express complicated data-based constraints simply.  For example, with a tractable amount of work I could opt to only see calls on the folder named “gabba3” using the constraint “mURI == ‘mailbox://nobody@Local%20Folders/gabba0′”.  This could be made particularly efficient if we make an assumption that the attribute is invariant once observed and then allow us to key off the pointer/memory region.
  • Code-sharing of pretty printers between my chroniquery code and my archer gdb plugins.
  • Now that archer-gdb has python inferior control, potential use of archer-gdb as an alternate back-end to chroniquery.
  • It would be neat to be able to expose chroniquery’s functionality via a web interface so that things could be expanded/drilled down without having to re-run things.  This would also help offset the non-trivial startup costs to chronicle-recorder’s own chronicle-query.  (Although arguably the startup time is nothing compared to the inefficiency of all the work chronicle-query does for a call and throws away when the next call pretty much wants that same data.)

thunderbird, gloda, exptoolbar, protovis, paninaro, oh oh oh

Posted on by

exptoolbar-protovis-gloda-256

Thunderbird.  With the global database, gloda.  Using the exptoolbar extension.  Using the protovis javascript visualization library.  For reals!  Not a prank!  Just grab the most recent XPI or grab the repo.  And be using a nightly (beta 2 might work?)

What you are looking at:

  • The exptoolbar search results page, augmented with a visualization.
  • Each conversation with search results gets its own wedge.
    • Wedges can be distinguished because of the alternating background colors.
    • Conversations that you sent a message to will have a red shading to them.  The examples may be somewhat misleading because the account where a lot of my sent mail ends up is not part of the profile used to create the screenshots.
  • Each message is placed in its conversation wedge…
    • The radius is based on the ‘age’ of the message using a log-ish scale.  Interpolation is actually linear at each level (one day, one week, one month, three months, one year, 5 years, ‘forever’.)
    • The angular placement within the wedge is based on the author of the message.  Across all wedges the placement is the same.  This helps ‘bursty’ parts of conversations (which are extremely likely) be made more obvious, while also helping to provide some understanding of conversation dynamics.
  • Message shapes are determined by whether the message is starred (diamond), sent by a ‘popular’ contact (circle), or an unpopular one (cross).  The use of popularity is a temporary measure because current gloda in trunk does not cache address-book lookups, and they are expensive.  Once the new gloda search code lands with those changes, we can rely on the existence of an address book entry.  (Starring a contact using the new message reader adds them to your address book.)
  • Message opacity is determined by whether the message is a ‘hit’ or not.  All messages in a conversation are eventually retrieved, though initially we only have the hits.
  • Message color is determined by applied tags (using the closest tango color for the first tag), or whether the message is starred (closest tango color to yellow, where I think I had removed the yellow tango colors for some unknown reason, so we get green I guess).  It’s grey if the message has no tag or star.
  • The subject of the conversation is displayed in the wedge.

exptoolbar-protovis-seek-thunderbird-256

Things that are happy:

Things that are sad (aka caveats):

  • It would probably be better if the visualization was not radar-inspired.  Besides the perceptual reasons, the subjects are harder to read than they would be in an equivalent linear-styled visualization.
  • The visualization is not interactive.  protovis officially has no interaction support yet, but if you look in the (only available minified?) source, it’s almost there.  It might be entirely there, but it didn’t work for me immediately after a quick reading of the (indented) source.
  • There is some low probability failure that occurs during the visualization updating as gloda backfills the message collections.  If it happens on the last update, you can end up with a half-built visualization.  Re-running the search will generally resolve the issue.
  • The visualization does a pretty solid job of taking up all the screen real estate and has no way to be disabled, so you have to scroll past it every time.

Future work:

  • Interactivity.
  • Perhaps showing the gravatars for the people involved in a conversation at the outer rim of the wedge, positioning them based on the author positioning we determined.
  • Perhaps lose the radar motif.
  • Your thoughts / patches!

understanding libmime using chroniquery and unit tests

Posted on by

chroniquery-trace-failed-return-value

Mailnews’ libmime is one of the harder modules to wrap one’s head around.  8-letter filenames where the first four letters tend to be “mime”, home-grown glib-style OO rather than actual C++, and intermingling of display logic with parsing logic do not make for a fun development or even comprehension experience.

Running an xpcshell unit test run under roc‘s chronicle-recorder and then processing it with my chroniquery stuff (repo info), we get a colorful HTML trace of the execution somewhat broken out (note: pretend the stream_write/stream_completes are interleaved; they are paired).  Specific examples of libmime processing for the inquisitive (there are more if you check the former link though):

The thing that kickstarted this exciting foray is the error pictured in the screenshot above from an earlier run.  The return values are in yellow, and you can see where the error propagates from (the -1 cast to unsigned).  If you look at the HTML file, you will also note that the file stops after the error because the functions bail out as soon as they hit an error.

However, our actual problem and driving reason for the unit tests is the JS emitter choking on multipart/related in writeBody (which it receives by way of ‘output_fn’).  Why?  Why JS Emitter?!  (You can open the links and control-F along at home!)

  • We look at the stream_write trace for our multipart/related.  That’s odd, no ‘output_fn’ in there.

chroniquery-stream_complete-output_fn

  • We look at the stream_complete trace for the multipart/related.  There’s our ‘output_fn’!  And it’s got some weird HTML processing friends happening.  That must be to transform links to the related content into something our docshell can render.  This also explains why this processing is happening in stream_complete rather than stream_write… it must have buffered up the content so it could make sure it had seen all the ‘related’ documents and their Content-IDs so it could know how to transform the links.
  • Uh oh… that deferred processing might be doing something bad, since our consumer receives a stream of events.  We had to do something special for SMIME for just such a reason…
  • We check stream_complete for ‘mimeEmitterAddHeaderField’ calls, which the JS emitter keys off of to know what part is currently being processed and what type of body (if any) it should expect to receive.  Uh-oh, none in here.

chroniquery-stream_write-addheaderfield

  • We check stream_write for ‘mimeEmitterAddHeaderField’ calls, specifically with a “Content-Type” field.  And we find them.  The bad news is that they are apparently emitted as the initial streaming happens.  So we see the content-type for our “text/html”, then our “image/png”.  So when stream_complete happens, the last thing our JS emitter will have seen is “image/png” and it will not be expecting a body write.  (It will think that the text/html had no content whatsoever.)
  • Khaaaaaaaaaaaaaaaaaaaaaaaaan!

In summary, unit tests and execution tracing working together with pretty colors have helped us track down an annoying problem without going insane.  (libmime is a lot to hold in your head if you don’t hack on it every day.  also, straight debugger breakpoint fun generally also requires you to try and formulate and hold a complex mental model… and that’s assuming you don’t go insane from manually stepping aboot and/or are lucky with your choices of where you put your breakpoints.)  The more important thing is that next time I want to refresh my understanding of what libmime is up to, I have traces already available.  (And the mechanics to generate new ones easily.  But not particularly quickly.  chronicle and my trace-generating mechanism be mad slow, yo.  It may be much faster in the future to use the hopefully-arriving-soon archer-gdb python-driven inferior support, even if it can’t be as clever about function-call detection without cramming int 0x3’s all over the place.)

Useful files for anyone trying to duplicate my efforts: my ~/.chroniquery.cfg for this run, the unit test as it existed, and the command-line args were: trace -f mime_display_stream_write -f mime_display_stream_complete -c -H /tmp/trace3/trace.html –file-per-func-invoc

gaudily colorized gdb backtraces! woo!

Posted on by

pythongdb-gaudy-groupview-crash-1

Like many people who have overdosed on syntax highlighting and other forms of colorization, my brain is no longer able to process monochrome text displays.  Which is why I have been so excited about gdb with python crammed inside.  (The good sense of “crammed”, wherein one is cramming cookies in one’s mouth.)  I have perverted its spirit and used it to colorize gdb backtraces!  Woo!

While I was in there, I have done two useful things:

  • There is magic of limited potency that normalizes the path automatically.
  • It looks at all the values in the arguments (and locals too, I guess) and if they are used more than once, it considers making them “interesting”.  Interesting values get named based on where we first saw them, and assigned a color.  Then, whenever they appear in the backtrace, they get their special name and color to help us see the flow of values through the backtrace.  For example, in the screenshot above you can see “this5” in a nice* blue color.  Each time its value appears, the “this5” label appears (the 5 is for frame 5).  I find this easier than manually scanning using my brain.

My hg repo is here: http://hg.mozilla.org/users/bugmail_asutherland.org/pythongdb-gaudy/

If you like this, or if you don’t like this but do like useful things, you are even more likely to like Jim Blandy’s archer-mozilla repo which is full of magic debugging help for spidermonkey in gdb.  (nb: The python-gdb trunk right now has changed how pretty printers register, and I don’t think that repo has yet caught up.)  Also, see Tom Tromey’s blog posts about the whole python-gdb thing.

* When I use “nice” in terms of colors, this is from my perspective as someone who demands many colors, has the time to add crazy colors to everything, but inexplicably does not have the time to actually pick colors that humans find appealing (or even non-nauseating).  I am going to pass the buck to the people who originally conceived of 256-color xterms and thought I could be trusted with a color cube, no matter how limited.

visualization of control-flow/data-flow analysis of sqlite EXPLAIN-ations

Posted on by
control-flow before

control-flow before

While doing some work on the gloda-based search targeted for beta 2, I came upon some query slowness and decided to look into it.  Because gloda queries are (conceptually, at least) dynamic, we also generate dynamic SQL.  Our schema is fairly normalized, and it’s not always obvious to me what I can expect to have going on.  EXPLAIN QUERY PLAN is a good litmus test for massive insanity, but it’s a bit concise.  For example, the troublesome SQL was as follows:

SELECT * FROM messages INNER JOIN messagesText ON messages.id = messagesText.rowid WHERE id IN (SELECT docid FROM messagesText WHERE subject MATCH "sutherland") AND deleted = 0 AND folderID IS NOT NULL AND messageKey IS NOT NULL ORDER BY date DESC LIMIT 100;

This nets us:

0|0|TABLE messages WITH INDEX deleted
1|1|TABLE messagesText VIRTUAL TABLE INDEX 1:
0|0|TABLE messagesText VIRTUAL TABLE INDEX 2:

Everything’s an index!  We win!  Sorta.  The index it chose is somewhat worrying if you think about it.  But really, it’s all quite nebulous.  I have basically no idea what is happening in there.  The good news is that EXPLAIN will tell us the actual opcodes in use.  The bad news is that it is quite hard to understand (104 opcodes), at least for this query.

Python, graphviz, pygraphviz, and compulsive tool-building to the rescue!  My original plan was that data-flow analysis could make everything incredibly obvious as to what is going on.  I’m not sure I reached that point.  But in the process, the efforts required to make the system clever enough to do data analysis allow the control flow diagram to be quite pretty and have lots of useful information.  The main sign of data-flow analysis is that all cursor write operations have the list of cursors that data flowed from in parens.  Each cursor gets its own tango-ish color, and opcodes involving the cursor are colored by that cursor.

The major flaw in the data-flow analysis that springs to mind right now is that it ignores control flow.  An action that will only be taken because of a control-flow decision based on data retrieved from a cursor should ideally establish a relationship.  This is important because gloda throws around a lot of set intersections (although not in this case) in its queries, and it would be nice to be able to concisely express that.  The control-flow diagram is arguably orders of magnitude better than a raw EXPLAIN, but my hope is/was that the data analysis can make it trivial to figure out how things are being hooked up.  Given the amount of effort already expended and the present results, I figure I’m probably at the “control flow is good enough for the foreseeable future stage of things”.

In any event, the control-flow graph makes it (more) obvious that the outer loop is using the ‘deleted’ index to walk over *every deleted message in the database*.  A one-off idiom computes the full-text search and stashes it in an intermediary table.  As we then walk over every deleted message, we see if that message can be found in the full-text search result table.  If it is, our previously queued lazy-seek against the main messages table happens and we search against the full-text table to do our join.  And out pop results!

My hope for this query was that the deleted condition would be executed as a constraint as we were walking our result set, just like the folderID and messageKey constraints.  Making sure your queries are using the right index and helping the optimizer make the right call is a fairly textbook problem and the SQLite docs are actually pretty good on this.  For the sake of the example, I have dropped the index entirely.  (The ‘deleted’ index was added so we can quickly mark messages as needing deletion processing without slowing down deletes for the user.  It may turn out to be more beneficial to leave the field as-is, but use a separate table as our work queue.)

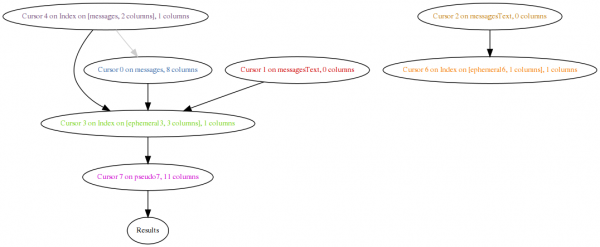

dataflow before

dataflow before

control-flow after

control-flow after

After the deletion, we get the revised diagram.  The full-text search still happens completely before we produce any other results, but this is keeping in keeping with our query.  (The query generation code is designed to handle the case where we have multiple constraints and must intersect the results of each.  It can clearly be optimized for the case where no primary-key intersection is required.)  The traversal of the full-text search result set is now the outer loop.  Deleted is now just filtering like folderID and messageKey, as expected.

The major lingering red flag is the block that calls Last() and Delete().  The conditional that makes the decision to do that is using “r1”, which is apparently implementing our limit logic inside the code.  This was confusing until I remembered that we’ve got an ORDER BY going on.  The Delete is just culling the results that will never potentially be seen.  The bad news is that we are doing our full-text search join prior to the ORDER BY culling.  So, my original fear that we are doing the JOIN no matter what still holds.  And that’s enough excitement for one day.

Given that any full-text search with ordered results will require retrieval the entire result set and correlating it against at least one table, I’m tempted to create separate tables for different windows of time given the importance of recency.  Thoughts/input appreciated, as anyone who has read this far is probably very detail oriented…

UPDATE (Feb 25, 2009): The hg repo is http://hg.mozilla.org/users/bugmail_asutherland.org/grokexplain/.  It now does some actual value propagation (and has had various bugs fixed).  By default it ignores ‘Yield’ because the way in which they are used (basically generator/continuation) wreaks havoc on the CFG with just straightforward static analysis.  If you want the yields, pass “yields” on the command line.  Also, passing “debug” gets you the states of the registers at the entrance/exit of the “basic blocks”.  (Not technically basic blocks, but close enough for my purposes.)

LogSploder, logsploding its way to your logs soon! also, logsplosion!

Posted on by

logsploder screenshot with gloda

In our last logging adventure, we hooked Log4Moz up to Chainsaw.  As great as Chainsaw is, it did not meet all of my needs, least of all easy redistribution.  So I present another project in a long line of fantastically named projects… LogSploder!

The general setup is this:

  • log4moz with a concept of “contexts”, a change in logging function argument expectations (think FireBug’s console.log), a JSON formatter that knows to send the contexts over the wire as JSON rather than stringifying them, plus our SocketAppender from the ChainSaw fun.  The JSONed messages representations get sent to…
  • LogSploder (a XULRunner app) listening on localhost.  It currently is context-centric, binning all log messages based on their context.  The contexts (and their state transitions) are tracked and visualized (using the still-quite-hacky visophyte-js).  Clicking on a context displays the list of log messages associated with that context and their timestamps.  We really should also display any other metadata hiding in the context, but we don’t.  (Although the visualization does grab stuff out of there for the dubious coloring choices.)

So, why, and what are we looking at?

When developing/using Thunderbird’s exciting new prototype message/contact/etc views, it became obvious that performance was not all that it could be.  As we all know, the proper way to optimize performance is to figure out what’s taking up the most time.  And the proper way to figure that out is to write a new tool from near-scratch.  We are interested in both comprehension of what is actually happening as well as a mechanism for performance tracking.

The screenshot above shows the result of issuing a gloda query with a constraint of one of my Inbox folders with a fulltext search for “gloda” *before any optimization*.  (We already have multiple optimizations in place!) The pinkish fill with greenish borders are our XBL result bindings, the blue-ish fill with more obviously blue borders are message streaming requests, and everything else (with a grey border and varying colors) is a gloda database query.  The white bar in the middle of the display is a XBL context I hovered over and clicked on.

The brighter colored vertical bars inside the rectangles are markers for state changes in the context.  The bright red markers are the most significant, they are state changes we logged before large blocks of code in the XBL that we presumed might be expensive.  And boy howdy, do they look expensive!  The first/top XBL bar (which ends up creating a whole bunch of other XBL bindings which result in lots of gloda queries) ties up the event thread for several seconds (from the red-bar to the end of the box).  The one I hovered over likewise ties things up from its red bar until the green bar several seconds later.

Now, I should point out that the heavy lifting of the database queries actually happens on a background thread, and without instrumentation of that mechanism, it’s hard for us to know when they are active or actually complete.  (We can only see the results when the main thread’s event queue is draining, and only remotely accurately when it’s not backlogged.)  But just from the visualization we can see that at the very least the first XBL dude is not being efficient with its queries.  The second expensive one (the hovered one) appears to chewing up processor cycles without much help from background processes.  (There is one recent gloda query, but we know it to be cheap.  The message stream requests may have some impact since mailnews’ IMAP code is multi-threaded, although they really only should be happening on the main thread (might not be, though!).  Since the query was against one folder, we know that there is no mailbox reparse happening.)

Er, so, I doubt anyone actually cares about what was inefficient, so I’ll stop now.  My point is mainly that even with the incredibly ugly visualization and what not, this tool is already quite useful.  It’s hard to tell that just from a screenshot, since a lot of the power is being able to click on a bar and see the log messages from that context.  There’s obviously a lot to do.  Probably one of the lower-hanging pieces of fruit is to display context causality and/or ownership.  Unfortunately this requires explicit state passing or use of a shared execution mechanism; the trick of using thread-locals that log4j gets to use for its nested diagnostic contexts is simply not an option for us.

Thunderbird and gloda go to meme-town

Posted on by

Sure, a word cloud of your blog posts is cool… but what if you could take any search of your e-mail, and turn that into a word cloud?  And then, if you click on one of those words, your search constraints would be revised to use the word you clicked on (and you’d get a useful search result, not another word cloud)?  And what if that layout algorithm were not as good as wordle?  The future is now, people!  (At least if you install like 5 extra extensions out of mercurial.)

The screenshot above is from Thunderbird trunk with a hacked exptoolbar extension (generalized, committed changes happening soon), visophyte-js, and the new glodacloud extension.  It is a proof-of-easy-gloda-extensions as suggested by David Ascher.

The layout algorithm is what we in the business of making up terminology call a recursive sub-optimal tic-tac-toe subdivision thinger.  We under-use a neat (and somewhat slow) hack to find the bounds of the words through use of canvas.mozPathText and canvas.isPointInPath to sample a grid to know where the text is and isn’t.  It’s under-used because all we use it for right now is to find the actual height above the baseline that the text stretches to (because metrics only gives us the width).  We are lazy and don’t check below the baseline at all, and totally squander our chance to be cool and put small words in the gaps in larger words.  But given the amount of time spent, I’m very happy.

Oh, and of course it uses JS and Canvas.

I’ll be wanting that latte machine now…

Posted on by

in context

credits where credits due:

  • thread arcs a la the nice people at the IBM CUE group
  • the search view prototype is implemented by David Ascher.  the positioning of the visualization is on me as a quick hack, though.
  • the search view prototype is designed by Bryan Clark, and he has even better stuff on the way

The actual implementation is a first step of adapting knowledge from my python “visophyte” library to a JS implementation using canvas.  I am trying a more batch-oriented style of processing this time that uses explicit attributes for value-passing between logic blocks.  This is in comparison to the python implementation which is more functional in nature.  We’ll see how it turns out.

chroniquery does useful things!

Posted on by

Before pecobro, there was chroniquery (shiny, also shiny, texty), a python binding for roc‘s chronicle-recorder omega-debugger.  Now, there is still chroniquery.  It just does more stuff, and does the stuff it previously did more correctly.

In any event, what the awesome ‘screenshot’ (it’s from a console…) shows:

  • A trace from running chronicle-recorder against xpcshell on amd64 running a gloda unit test.
  • Javascript being ‘traced’ with extraction of the function name, script, and line number… everything you’d expect from your dtrace probes or your JSD hooks/venkman/firebug…
  • Hm… it seems to know something about an XPConnect call going down…
  • Oh noes!  It has escaped into the C++ codes!
