the beginnings of a gdb execution trace visualization

GDB execution trace vis 1

Python code driving gdb via the mi2 interface (using pexpect and pyparsing) begets a trace file. Python code processing the trace file begets an html document (with syntax highlighting thanks to pygments.) The above is just a screenshot of the output, which you can actually browse here.

The “visualization” is pretty simple. Lines of code with a light green background were executed in the trace. 15 lines of context are shown around executed lines of code. The bars to the left show when the line of code was executed during the trace. If the code was a function call, its bar is extended until the function call completed based on conclusions drawn from knowing the stack depth at each step. There is currently no way to visually distinguish from the graphic between a line executed many times in rapid succession and a call that lasted a long time. You would need to either look at the code or cheat and use firebug.

The visualization is of a call to commit() using pysqlite2 on sqlite3 which fails because of an outstanding select that has not yet had all its rows retrieved. My conclusion is that clever generator tricks (not mine!) can bite you when any piece of your stack has concurrency issues… and pysqlite2 should report the most specific error string possible. (Going to provide a patch; still think the trunk would provide the rather generic error that bit me.) For those using trac’s version control abstraction, be warned that changeset traversal is most definitely a (logic) generator wrapping a row-results-fetching generator.

GDB execution trace vis 2

The tracing mechanism is pretty straight-forward. The tracing class is told an interesting breakpoint and an ignore count. Once the count has been reached, “step” tracing begins. The idea was to do a first pass that just counts how many times the interesting breakpoint occurs before the program tanks, then we can skip to the last few before doing the (slow) step-wise tracing in the second pass. The goal would be to approximate a light-weight tracing mechanism where we can see what the program did before whatever bad state occurred. Gah! I was just going to say that there aren’t any open source tools readily available to accomplish that goal (dyninst/dpcl still require a bit of legwork), but it turns out that Chronicle (formerly Amber) has recently been released. (For whatever reason, Robert O’Callahan’s post didn’t show up in his feed via planet mozilla for me.) OTOH, this method is still potentially useful for remote gdb target debugging on actual hardware (albeit extremely slowly), or perhaps for a case where the program must do a lot of execution before the interesting part of the trace happens, lending itself to a non-valgrind solution. I presume you would pay the simulation price for valgrind the whole way through, unless valgrind can ‘absorb’ a running process into its simulation.

I also have a visualization done using visophyte’s model abstraction (if you are going to go and invent yet another multi-backend canvas abstraction layer, you might as well use it), but without some way to view the corresponding code and explore, it is useless. The generated HTML here is more useful, but still lacking in interactivity or true context. That would be the next step. The step after that would be throwing back in a concise and interactive visualization. The same effort required for that should allow me to produce interactive visualizations from thunderbird.

An actual thunderbird email visualization, at last!

I have long had the goal of doing some form of e-mail visualization. After many false starts (for both Thunderbird and Outlook), I finally have something to show:

Graphito vis example 2

Now, of course, there are all kinds of caveats. This is all done in Python using PyXPCOM and PyDOM (hooray Mark Hammond!) The bad news is that the Python code is still unable to interact with the JavaScript pieces of Thunderbird. The good news is Mark Hammond already has a solution to allow Python and JavaScript to interact somewhat transparently (on bug 327689). Unfortunately, the patch does not work out of box for me, although it may be due to some underlying PyXPCOM problem that I still need to look into; I can’t even instantiate the error number service via PyXPCOM.

Since I haven’t implemented the labelling required to make the screenshot remotely intuitive, here’s an explanation of the visualization accompanied by a simpler picture generated by a test program using static data and the aggdraw renderer (no Thunderbird involved for this one):

Visualization using aggdraw to render from test data.

  • Time flows from left-to-right, old-to-new.
  • The background represents the days of the week and standard 9-5 business hours. Dark grey for the weekends, lighter grey for the week days, and then bands of even lighter gray for the 9-5 business hours on week days. The background should simplify when dealing with larger time-scales, but that’s down the line.
  • Nodes are placed vertically so that each horizontal strip corresponds to a single e-mail address. All nodes are colored based on their author.
    • Opaque squares represent an e-mail from that person (the one who owns/is the strip) to me, the user of the program.
    • Alpha-blended squares represent that person receiving a copy of the e-mail (‘to:’ only currently).
    • Circles represent me, the user of the program, having sent an e-mail to that person. If I sent it to many people, they each were on the ‘to:’ line.
  • Lines connect an e-mail with the message it is in reply to. Alpha-blended lines accompany alpha-blended nodes.

The first two visualizations are from a somewhat recent trunk build of Thunderbird with python and svg turned on. I have omitted the rest of the Thunderbird window because I’d just have to blur most of it out anyways. The data-sets come from two different folders that I copied interesting sets of messages to (including the messages from the thread in my ‘sent’ folder). Because of the aforementioned lack of javascript interaction, clicking on a node does nothing. However, I do print out info on the message when you hover over it or click on it. This is actually specified via the visualization infrastructure, it’s the ‘control’ object which just prints it out in a debug fashion.

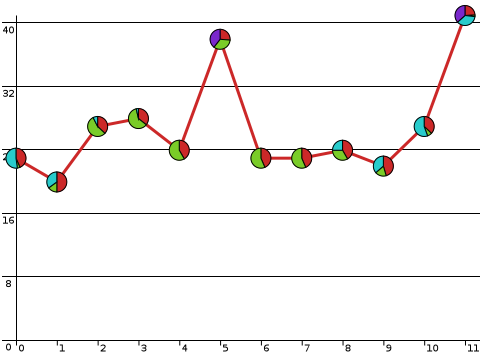

Filler visualization, also by visophyte, rather silly though.[1]

The visualizations are powered by the python ‘visophyte’ library which I have been developing. Visophyte is the successor to the koalaRainbow Movable Type plugin I wrote for the Movable Type 3.1 plugin contest. koalaRainbow (for MT) was more of a simple procedural drawing markup mechanism fronting a query-language than a visualization engine. Its visualization definitions were incomprehensible due to a lack of any real abstraction. With any luck, visophyte will suffer the excesses of too much abstraction. koalaRainbow (for MT) died because #1 I wrote it in order to learn Perl so that I could legitimately dislike Perl, and #2 I favor Python for all my scripting. Visophyte will enjoy continual development because I love visualization and I use python all over the place.

One important note from the outset is that although I am a fan of PyXPCOM, I doubt visophyte as it exists would be appropriate for an email visualization plugin for thunderbird that would enjoy wide usage. Developing a JavaScript visualization engine would be much less reusable for my purposes, so I’m not doing that. One possibility might be to compile the visualizations to javascript, optimizing them as we go, a la pyjamas.

1: This visualization is just here to break up the text. It is also a visophyte simple test, but rather silly. It is unlikely anyone would really want a line chart with pie charts at each point. The line itself shows total sales by month, whereas the pie-chart shows a sales breakdown among products for that specific month. A stacked area chart would be the ‘sane’ alternative to this graph, though we could have multiple lines/pies here, I’m just too lazy to make up the data.
